Practical, specification-grade guidance for projects across Indiana, Southwest Michigan, and the south side of Chicagoland.
Intro — focused on dewatering and source consistency
This guide focuses strictly on Birdseye Pea Gravel as a drainage and dewatering material and on why a single, consistent supply source matters. If your project requires reliable, free-draining aggregate for trench drains, sump surrounds, perimeter drains, or subdrains, this guide explains the material properties, field-proven applications, installation best practices, and how to specify Birdseye so it performs as intended.
What is Birdseye Pea Gravel?

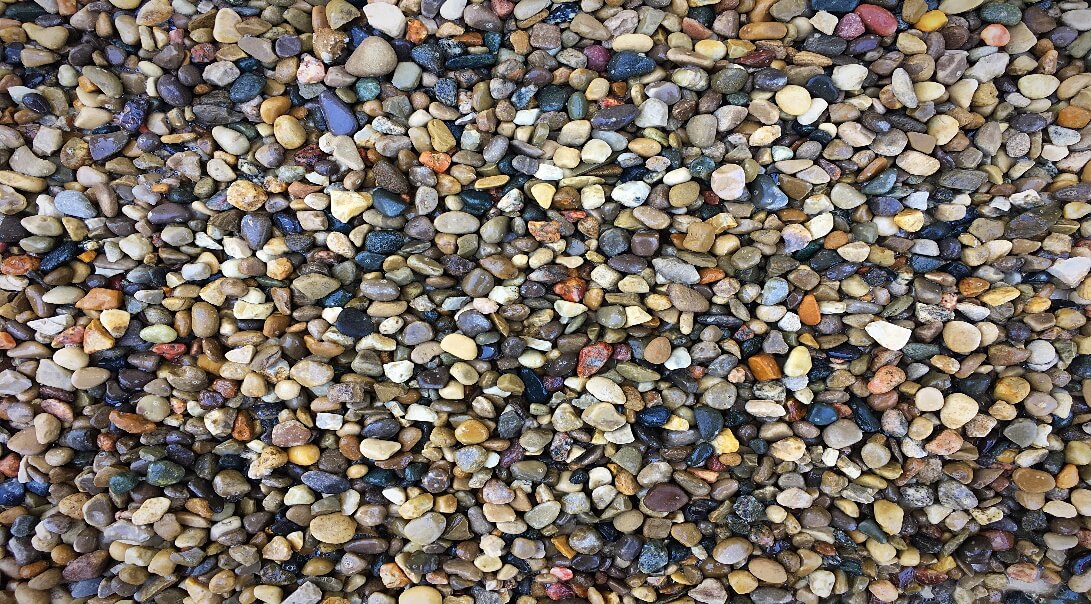

Birdseye Pea Gravel is a small, rounded aggregate typically sized 1/8″ to 3/8″. The stones are smooth and closely screened, producing a uniform texture and excellent permeability. These properties make Birdseye an excellent choice wherever groundwater must be collected and carried away reliably, including underdrains, sump surrounds, and infiltration layers.
Why Birdseye is especially effective for dewatering
Birdseye’s suitability for dewatering comes down to three material attributes:
- Open void structure. Rounded particles form continuous pathways that allow water to flow quickly to perforated drains or sump pits.
- Low fines (washed/clean). Washed pea gravel resists clogging by silt and fines, preserving permeability and reducing long-term maintenance.
- Predictable particle size and roundness. Tight screening and rounded shapes prevent formation of low-permeability pockets that can occur with mixed, angular aggregates.
Together, these attributes create a free-draining envelope that reliably funnels groundwater into collection systems without frequent maintenance.
Field-proven assemblies using Birdseye Pea Gravel
Below are concise, practical assemblies where Birdseye is the drainage media of choice:

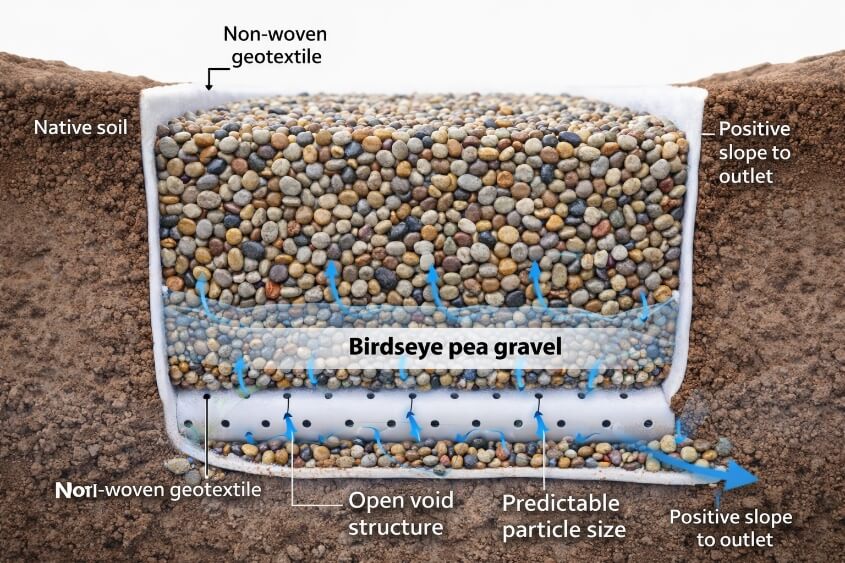

Trench and perforated-pipe underdrains
- Line or wrap the trench with non-woven geotextile.
- Place a bedding layer of pea gravel, set the perforated pipe on the bedding, then cover the pipe with additional pea gravel (pipe crown plus several inches each side).
- Wrap the gravel and backfill. The gravel envelope funnels groundwater to the pipe while minimizing fine migration.
Sump pits and pump sumps
Surround sump inlets with pea gravel to accelerate collection and reduce pump run time by improving hydraulic contact.
Perimeter/foundation drains
Install a continuous strip of wrapped pea gravel behind membranes or next to footings to channel groundwater into the drainage system without encouraging clogging.
Subdrains & stormwater infiltration layers
Use Birdseye as a construction-stage or permanent drainage layer beneath pavement or in swales where free drainage and structural support are both needed.
Installation best practices (practical checklist)
To get reliable, long-lasting performance, follow these on-site rules:
- Use geotextile filter where native soils contain fines — this prevents silt migration into the gravel.
- Require washed/clean material to minimize fines; visually inspect deliveries for sediment or organics.
- Wrap gravel and pipe with non-woven filter fabric before backfill.
- Ensure positive slope to the outlet (even 1%–2% significantly improves flow).
- Specify sufficient envelope thickness around pipe — typically several inches to a foot depending on the project.
- Avoid over-compacting the drainage layer; pea gravel functions as a free-draining medium, not structural fill.
- Inspect before final backfill — confirm fabric continuity, gravel cleanliness, and hydraulic performance (a simple infiltration check is often useful).

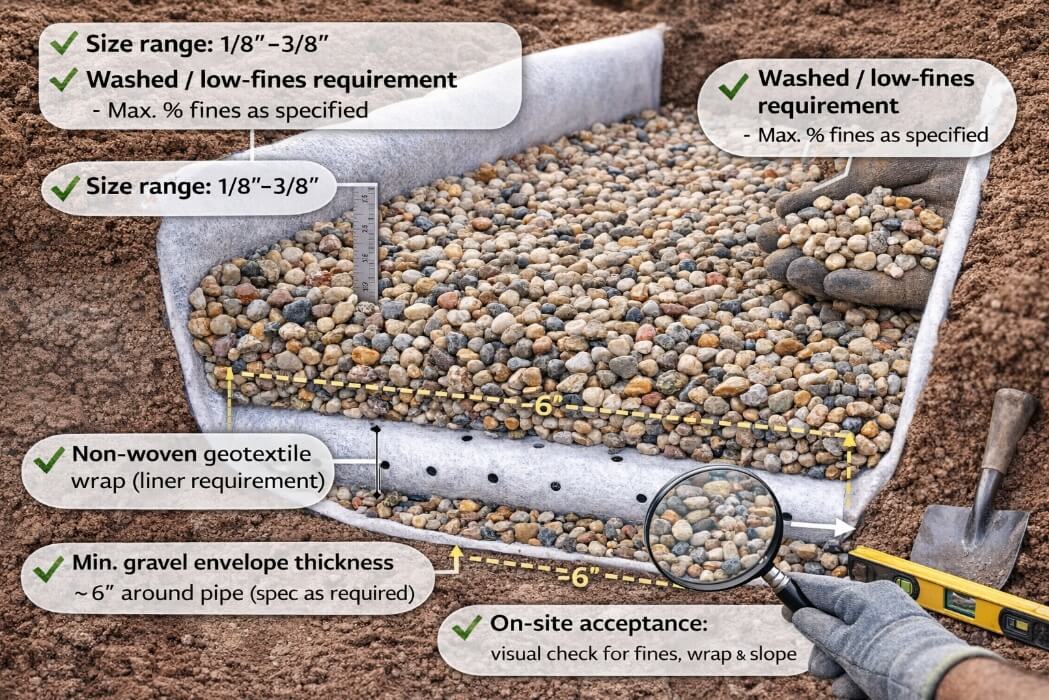

How to specify Birdseye Pea Gravel
For consistent performance, include the following in specifications:
- Size range: 1/8″–3/8″ (or the project’s required screened range).
- Washed / low-fines requirement (state maximum percent fines as appropriate).
- Non-woven geotextile wrap or liner requirement.
- Minimum gravel envelope thickness and tolerance for placement around pipe.
- On-site acceptance: visual check for fines and verification of fabric wrap and slope.
Supply consistency — the single-pit advantage
Birdseye in this guide is produced from one main sand pit, and that single-pit sourcing is important for two reasons:
- Material consistency. One pit with consistent geology and screening practices produces gravel with uniform sizing and behavior. That predictability reduces risk at installation and simplifies acceptance testing.
- Simplified quality control. When deliveries come from a single, known source, it’s easier to verify washed-material claims, screen tolerances, and stockpile handling — all of which affect permeability and long-term performance.
If a project requires traceability or certified conformity, note the single-pit sourcing in the specification and coordinate acceptance sampling with the supplier’s operations team.
Regional note — Indiana, Southwest Michigan, south side Chicagoland
This guide addresses projects in Indiana, Southwest Michigan, and the south side of Chicagoland. Regional geology and quarrying practices produce Birdseye materials with recognizable aesthetic and performance traits across these areas. For projects that reference state approvals or DOT lists, confirm compliance with project specifications and relevant agency requirements.
Summary
Birdseye Pea Gravel (1/8″–3/8″, washed, produced from a single main sand pit) provides predictable permeability and low-maintenance performance for dewatering and drainage envelopes such as trench drains, sumps, perimeter drains, and subdrains. To ensure the system performs as intended, specify screened size, washed/low-fines material, geotextile wrap, and appropriate envelope thickness, and perform straightforward on-site acceptance checks.
